CTFZ-13AV 15T Roller Brake Tester | Heavy-Duty Vehicle Brake Performance Testing System with High-Adhesion Rollers & Automatic Stop Function

Description

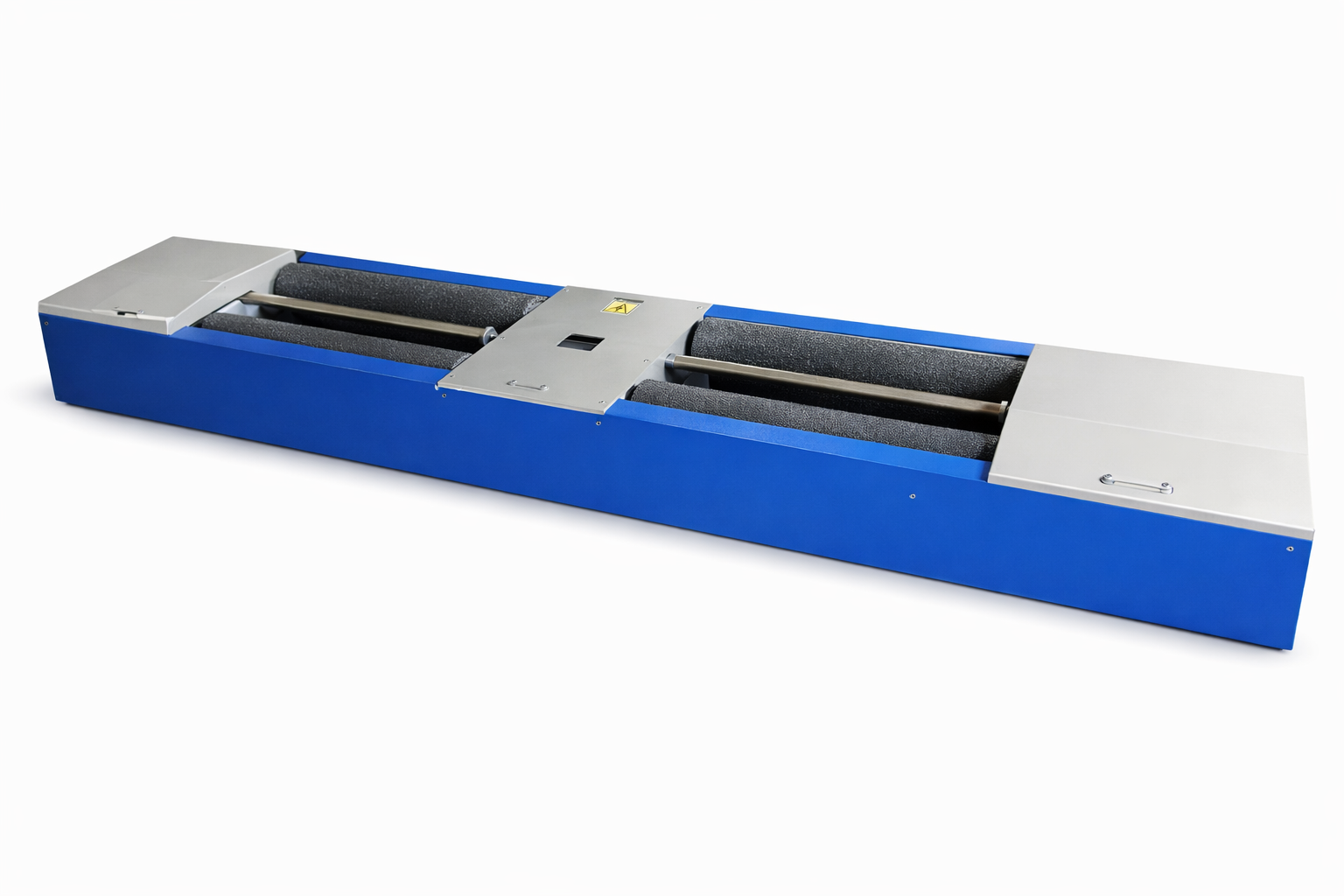

CTFZ-13AV 15T Roller Brake Tester – Precision Brake Safety Testing for Heavy-Duty Vehicles

The CTFZ-13AV Roller Brake Tester is a professional-grade brake testing solution engineered for vehicle safety inspection centers, truck workshops, and commercial fleet maintenance facilities. With a 15-ton load capacity, this heavy-duty system is specifically designed to test the brake performance of trucks, buses, and other commercial vehicles.

Key Technical Specifications:

• Model: CTFZ-13AV

• Load Capacity: 15t

• Roller Diameter × Length: 245mm × 1100mm

• Motor Power: 2 × 15 kW

• Braking Force Measurement Range: 2 × (0-45 kN)

• Power Supply: 380V 50/60Hz

• Adhesion Coefficient: >0.85 (dry and wet conditions)

• Measurement Error: <1.5% (National Standard <3%)

• Roller Longevity: >200,000 test cycles

Advanced Brake Testing Capabilities:
The CTFZ-13AV provides comprehensive brake performance analysis for each vehicle axle:

• Axle-by-Axle Brake Force Measurement: Detects left and right wheel brake forces individually

• Brake Force Deviation Analysis: Calculates process deviation and maximum deviation between wheels

• Brake Force Ratio Calculation: Measures ratio of brake force to axle load

• Handbrake Performance Testing: Evaluates handbrake force relative to total vehicle weight

• Real-Time Data Display: Instant feedback on brake performance metrics

Key Features & Benefits:

1. Robust & Durable Construction

• Main body is fully welded with reinforced high-strength steel

• No anchor bolts required for installation – easy to adjust and reposition

• Stable, durable structure suitable for heavy-duty commercial use

2. High-Performance Rollers

• Rollers coated with high-quality corundum sand using advanced adhesive technology

• Adhesion coefficient >0.85 in both dry and wet conditions

• Tested for longevity exceeding 200,000 cycles

• High precision with excellent repeatability

3. Premium Components

• Reducer manufactured using European technology

• Main components (motor, bearing, sensors) from domestic leading brands

• ISO9001 and CE certified quality systems

4. Intelligent Safety Features

• Third Roller System: Automatically detects wheel lock and stops motor to prevent tire wear during testing

• Anti-Skid Program: Prevents tire damage during brake force measurement

5. Flexible Installation Options

• Standard Version: No lift included

• Optional Airbag Lifting Device: +4,000 RMB – facilitates easy vehicle entry and exit from the tester

Ideal Applications:

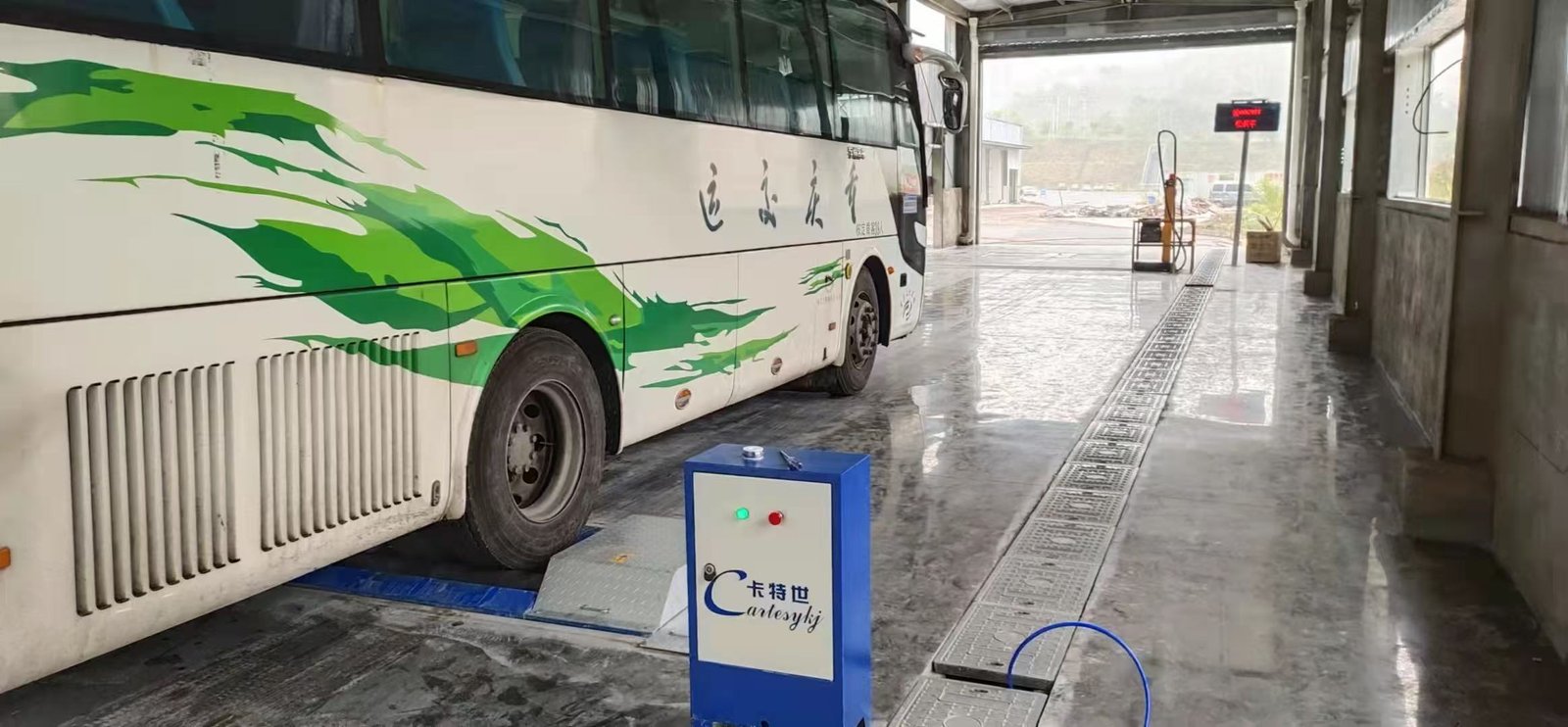

• Vehicle Safety Inspection Centers: Core equipment for mandatory brake performance testing

• Truck Fleet Maintenance Facilities: Regular brake safety checks for commercial vehicles

• Bus Depots & Transportation Companies: Ensure passenger vehicle brake safety compliance

• Government Vehicle Inspection Stations: Meet national safety testing standards

• Heavy Equipment Workshops: Brake diagnostics for large commercial vehicles

The CTFZ-13AV combines rugged construction with precision measurement technology to deliver reliable, accurate brake testing for heavy vehicles, helping ensure road safety and regulatory compliance.
